358 High Security Fence

Short Description:

MaterialMild Steel

Surface treatment:

I. Electro galvanized welded mesh

II. Hot dipped galvanized welded mesh




Product Detail

Product Tags

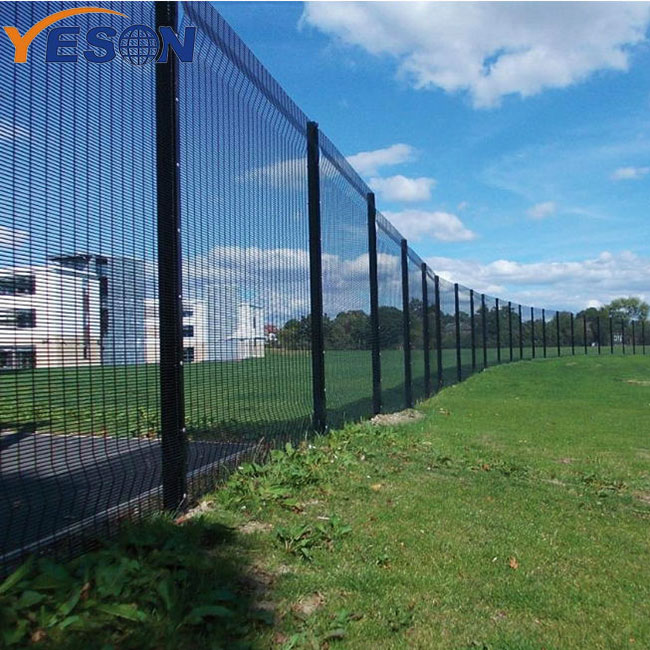

358 Security Fence  also called Anti climb fence, is the ultimate welded mesh system providing a high degree protection and discreet visual impact on the immediate environment.

Material:Mild Steel

Surface treatment:

I. Electro galvanized welded mesh

 II. Hot dipped galvanized welded mesh

anti-climb-fence

Feature of 358 High Security Fence :

  • Strong anti-climbing ability
  • Strengthening the mesh increases the degree of damage
  • Long use time
  • strong and sturdy

Application of  358 High Security Fence

Airport fences are mainly used for protective nets, but also for protection belts on both sides of highways, bridges, airports, ports, and docks.
Isolation and protection of parks, lawns, zoos and residential areas in municipal construction.

Specification of 358 High Security Fence :

358 Fence Description

Panel height 2100mm 2400mm 3000mm
Fence height 2134mm 2438mm 2997mm
Panel width 2515mm 2515mm 2515mm
Hole size 12.7mm×76.2mm 12.7mm×76.2mm 12.7mm×76.2mm
Horizontal wire 4mm 4mm 4mm
Vertical wire 4mm 4mm 4mm
Panel weight 50kg 57kg 70kg
Post 60×60×2mm 60×60×2mm 80×80×3mm
Post length 2.8m 3.1m 3.1m
Clamp bar 40×6m slotted 40×6m slotted 40×6m slotted
Fixings 8 gal bolt c/w permanent security nut
No. of fixings 8 9 11

Customization accepted
